Mitsubishi Electric Inverter
>
|
| Place of Origin | China/Japan |
| Brand Name | Mitsubishi |
| Certification | CE |

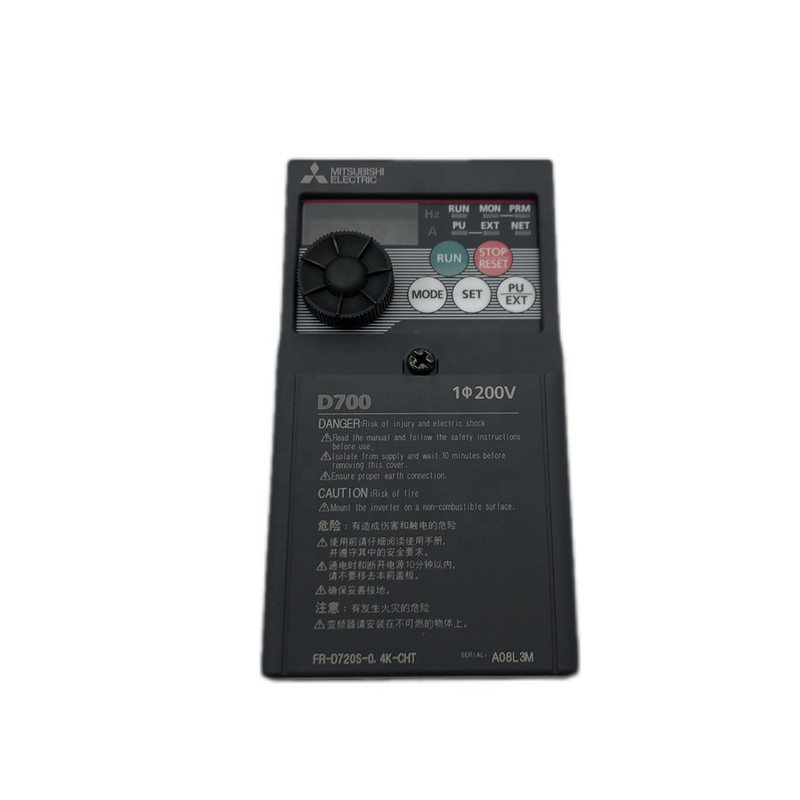

| Model Number | FR-D720S-0.4K-CHT |
|
Mitsubishi VFDs Inverter |
FR-D720S 0.75kW to 2.2kw |
|||||
|
Model FR-D720S-oK |
0.1 |
0.2 |
0.4 |
0.75 |
1.5 |
2.2 |
|
Model FR-D720S-o-NA |
008 |
014 |
025 |
042 |
070 |
100 |
|
Model FR-D720S-o-EC |
008 |
014 |
025 |
042 |
070 |
100 |
|
Model FR-D720S-oK-CHT |
0.1 |
0.2 |
0.4 |
0.75 |
1.5 |
2.2 |
|
Applicable motor capacity (kW)*1 |
0.1 |
0.2 |
0.4 |
0.75 |
1.5 |
2.2 |
|
Rated capacity (kVA)*2 |
0.3 |
0.6 |
1.0 |
1.7 |
2.8 |
4.0 |
|
Rated current (A) |
0.8 |
1.4 |
2.5 |
4.2 |
7.0 |
10.0 |
|
Overload current rating*3 |
150% 60s, 200% 0.5s (inverse-time characteristics) |
|||||
|
Voltage*4 |
Three-phase 200 to 240V |
|||||
|
Regenerative braking torque*5 |
150% |
100% |
50% |
20% |
||
|
Power supply
Rated input AC voltage/frequency |
Single-phase 200 to 240V 50Hz/60Hz |
|||||
|
Permissible AC voltage fluctuation |
170 to 264V 50Hz/60Hz |
|||||
|
Permissible frequency fluctuation |
±5% |
|||||
|
Power supply capacity (kVA)*6 |
0.5 |
0.9 |
1.5 |
2.3 |
4.0 |
5.2 |
|
Protective structure (JEM1030) |
Enclosed type (IP20). |
|||||
|
Cooling system |
Self-cooling |
Forced air cooling |
||||
|
Approximate mass (kg) |
0.5 |
0.5 |
0.9 |
1.1 |
1.5 |
2.0 |
Mitsubishi Frequency Inverter FR-D700
The micro-drive solution
Simple and safe operability, compact design as well as improved performance features were the focus during the development of the FR-D700 frequency inverter.
A drive was created that set standards in the field of compact drives.Improved functions and device properties such as simplified cabling thanks to spring clamps,
the integrated Digital Dial with LED display, improved performance yield in the low-speed range as well as the integrated emergency stop function make the FR-D700 the standard in the ultra compact class.
The FR-D700 is especially advantageous for standard applications by virtue of its user- friendliness. It is the correct choice in both simple and more sophisticated applications.
Typical applications are feeder and conveyor drives, machining tools or gate and door drives.
